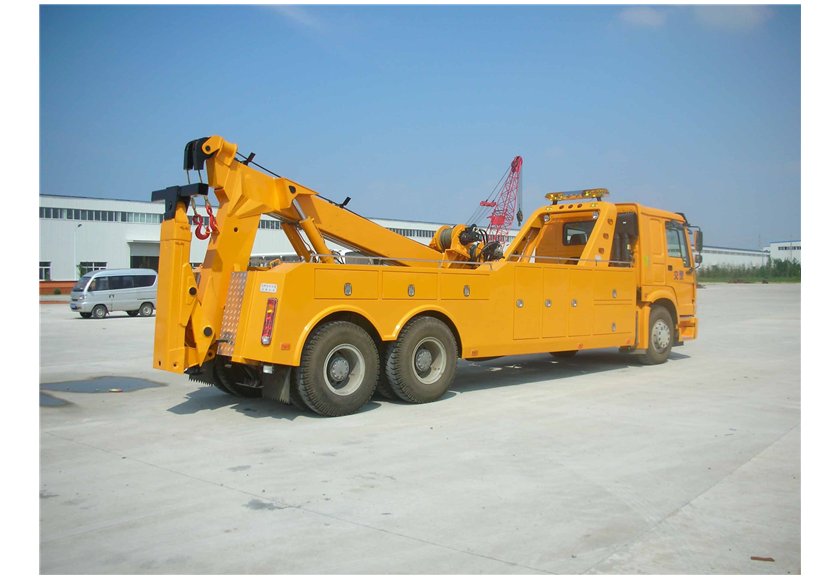

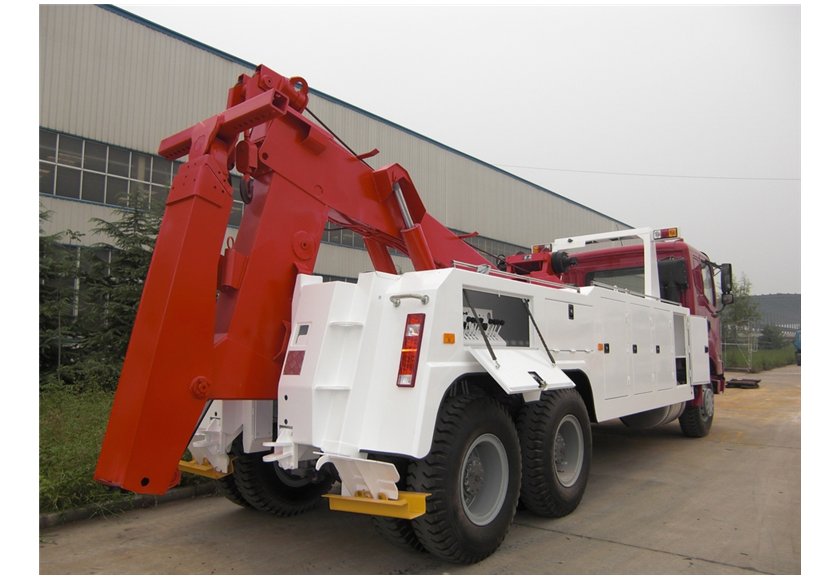

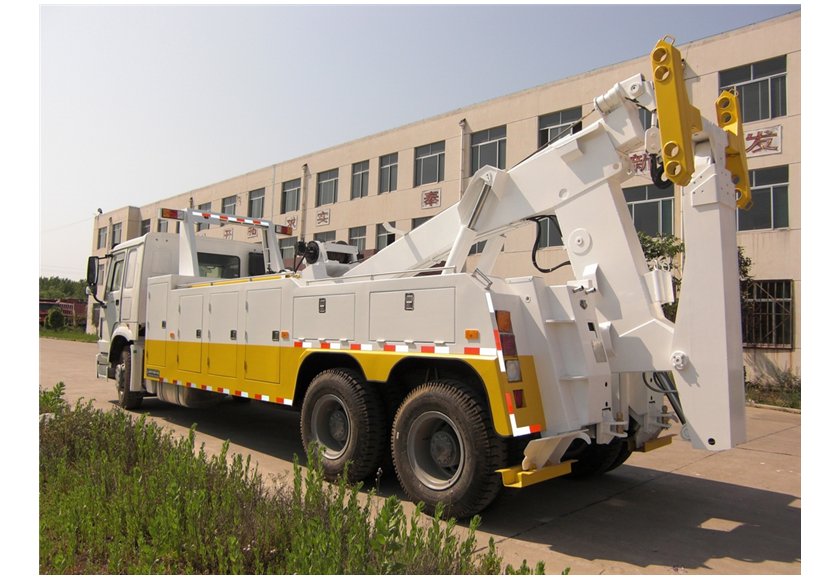

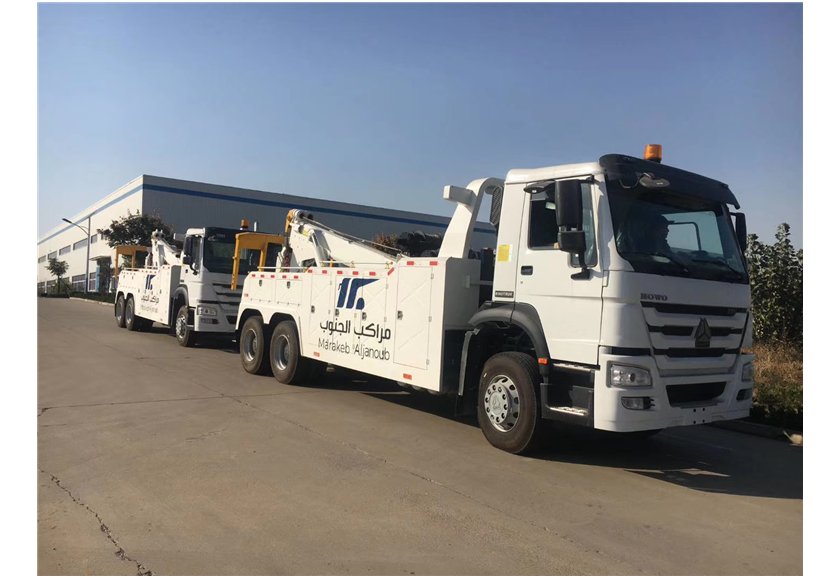

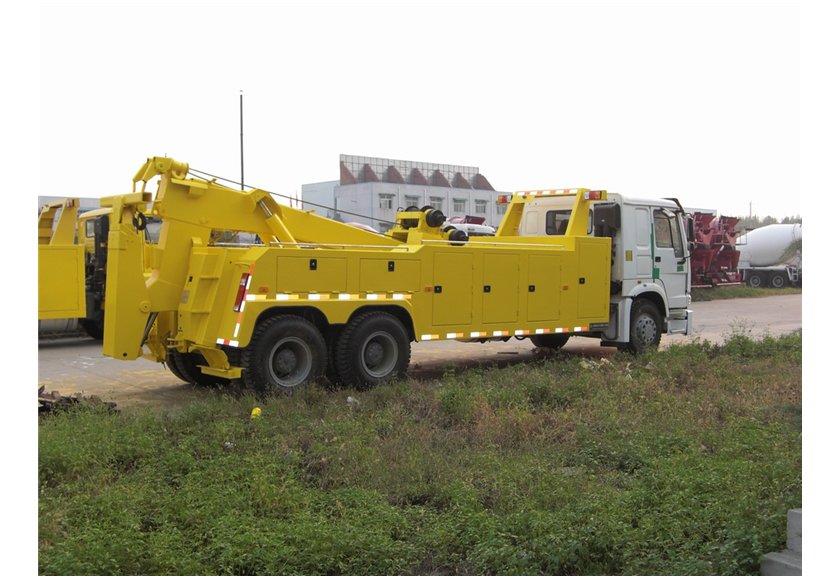

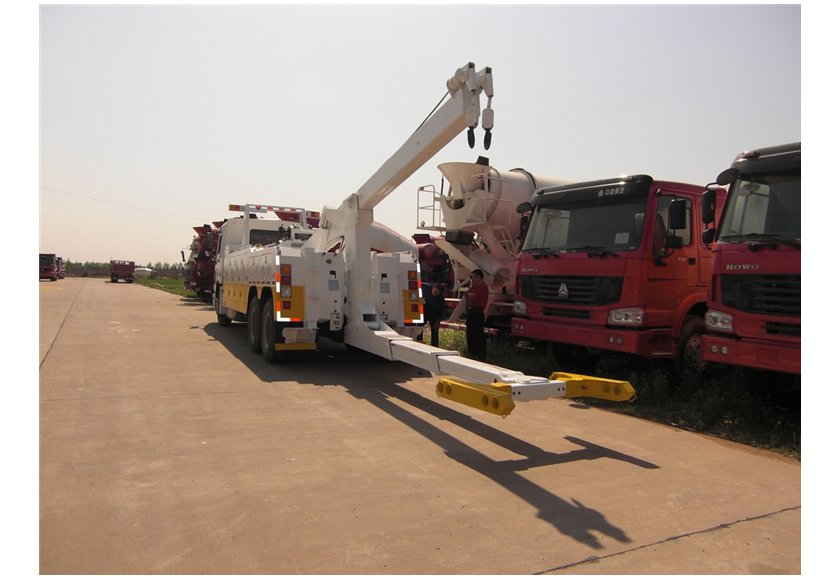

HOWO 6x4 Road Wrecker Truck

Driving model

LHD/RHD (left hand drive or right hand drive)

Overall dimension

10430x2496x3600 (Length x width x height)

Cabin

HW76

Tires

10+1 spare tyre with rim

12.00R20 radial tyre, 18PR, mixed pattern

Axle

VGD95 front axle，MCX16ZG*2 rear axle

Engine

Model

WP10.380E22, Euro II, Diesel

Engine power

280KW (380HP) @ 2200 tr / min

Max torque

1600 N.m @ 1500-1800 tr / min

Air intake type

turbo-charge and inter-cool

Fuel injection type

Direct injection

Gearbox

HW19710 gearbox with power take-off, 10 forward speeds + 2 reverse speeds

Steering

ZF8118 Steering gearbox, hydraulic power steering.

Braking system

Parking brake (emergency brake): spring energy, compressed air operating on rear wheels

Suspension system

Strengthen heavy duty Leaf spring type

Main beam

Double-layer frame (8 + 8/300)

Wrecker Truck

Maximum crane mass

20T

Maximum towing mass

40T

In situ lift mass

20T

Other

Italy Hyde import multi-way valve and balance valve,

Two-section hexagonal boom, three-section bracket,

45 m wire rope, diameter 18mm,

Two 10-ton hydraulic winches,

Double linkage operation device, triple wireless remote control device,

2 hydraulic legs, supporting force 80KN,

Equipped with 4 sets of steel forks, 1 set of towing fork cover, 1 set of steel plate lug towing fork, 1 set of tire holding device,

1 long line of engineering lights + loudspeakers,

1 set of auxiliary lights, 1 set of auxiliary trachea, 2 binding chains,

2 sets of three color lights for gantry frame, a pair of LED working lights,

1 hand washing box, 1 set of external power supply assembly,
