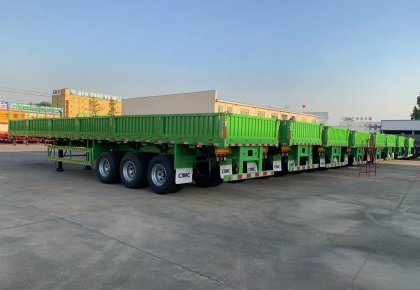

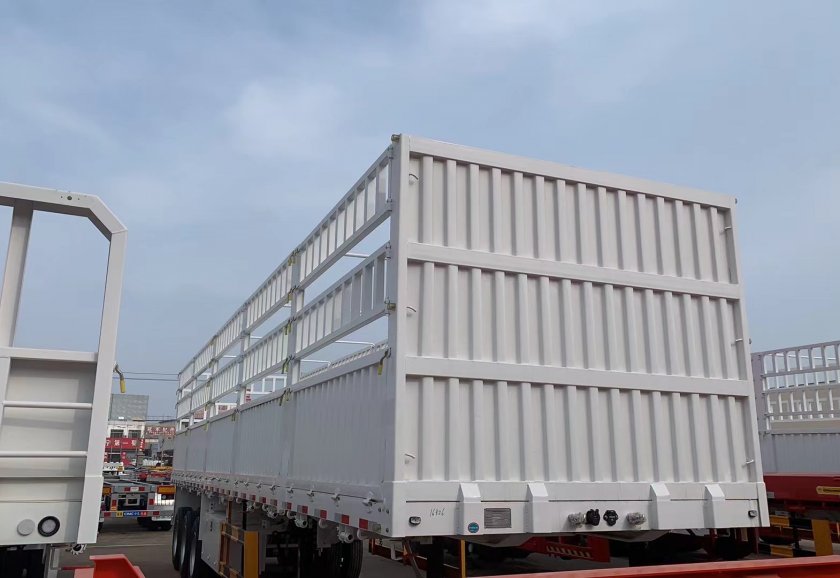

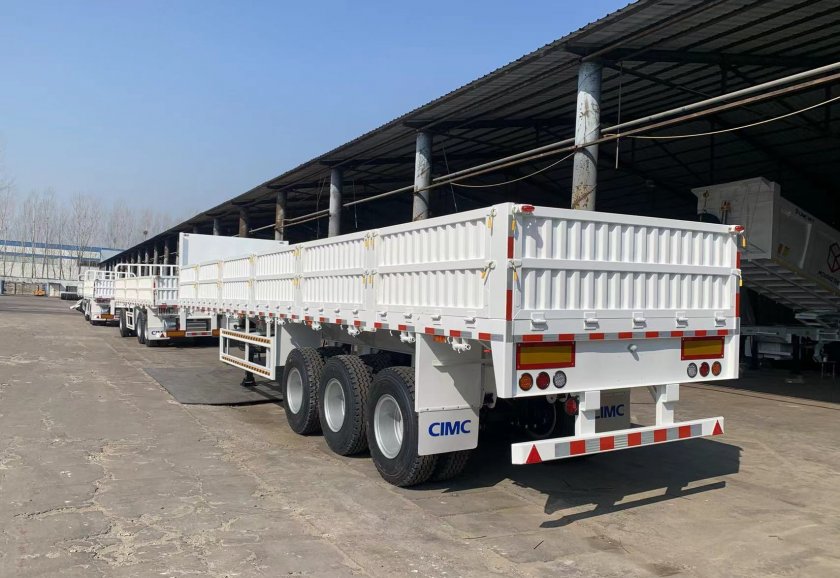

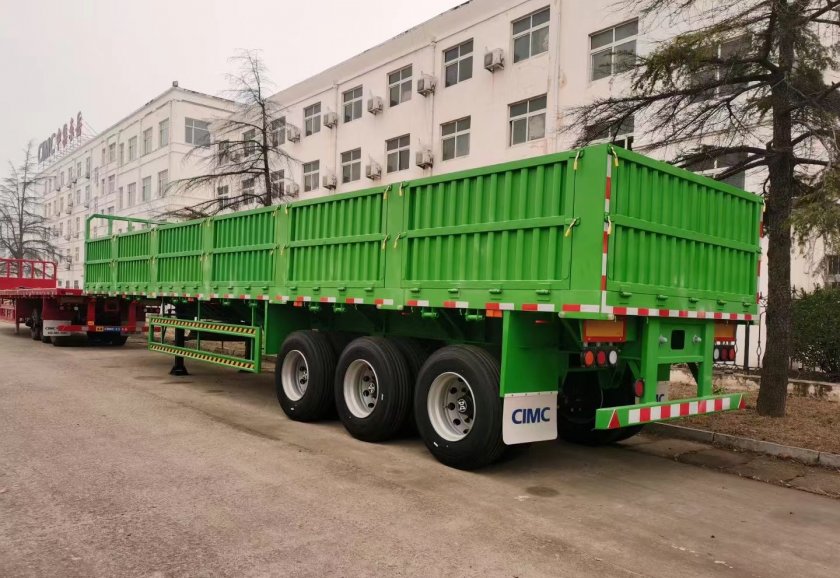

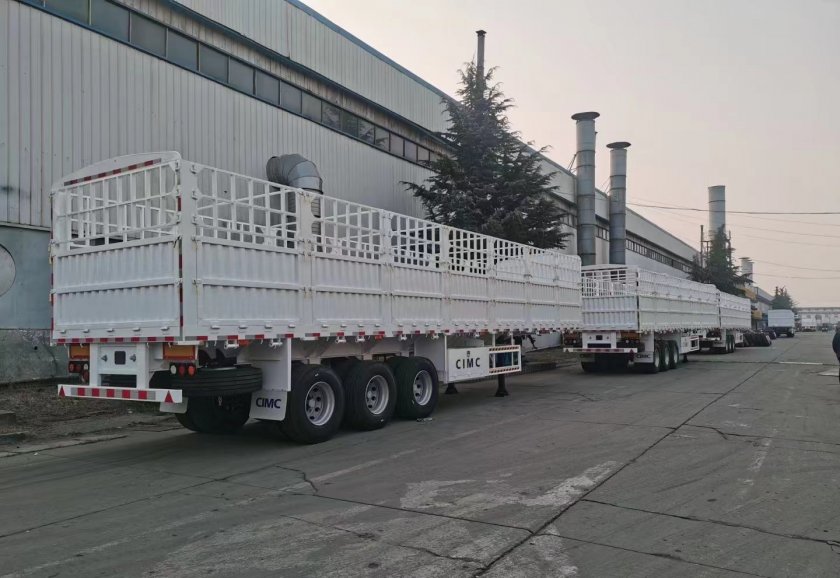

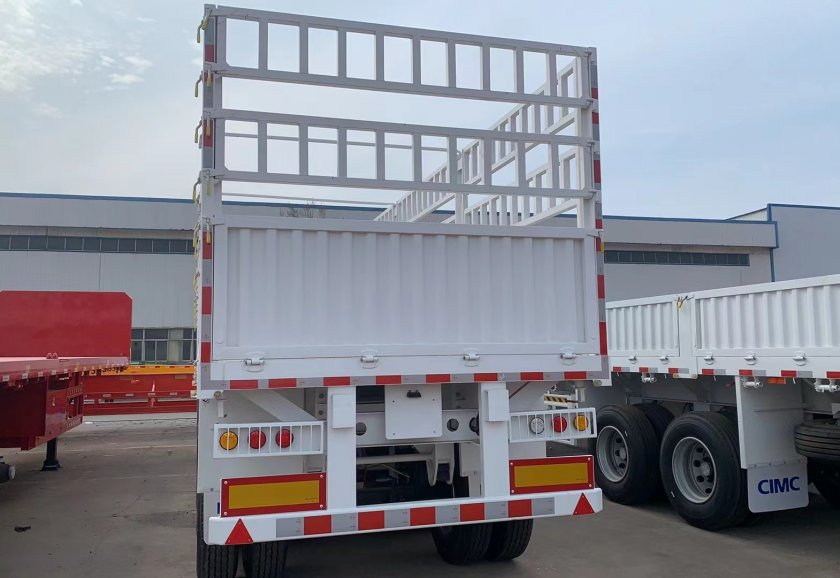

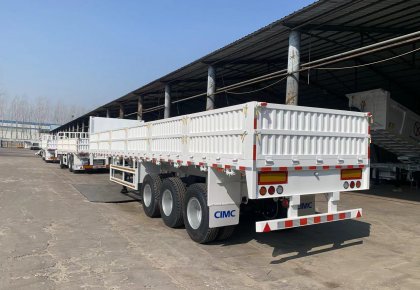

Product Name | CIMC brand 3 Axle Fence Semi Trailer |
Dimension (mm) | 14,000 x 2,550 x 3,400 |
Loading weight (KG) | 40,000 |
Axle | BPW brand, 13T * 3 |
Sidewalls height | 1800mm (600mm+450mm+450mm), plate can be removed |
Main beam | Beam height 500mm, Top plate10mm, Bottom plate 12mm, Middle plate 6mm. |
Tire | Linglong brand 12R22.5 * 12 pieces |
Suspension system | Reverse mechanical suspension 90/10/13 Leaf spring |
Central pivot | 3”(90mm) / 2.5”(50mm) |
base plate | 3mm steel plate |
Toolbox | 1 |
Braking system | Dual line brake system |
Brake air chamber | Two double bedrooms and two singles |
Landing gear | Standard 28 tons |
Electrical system | Voltage: 24v Socket: 7-way (7-wire harness) Rear light with indicator, brake light and reflector, side light A standard 6-conductor cable |
Side guard | Standard |
Paint color | Custom (Polyester paint) |
